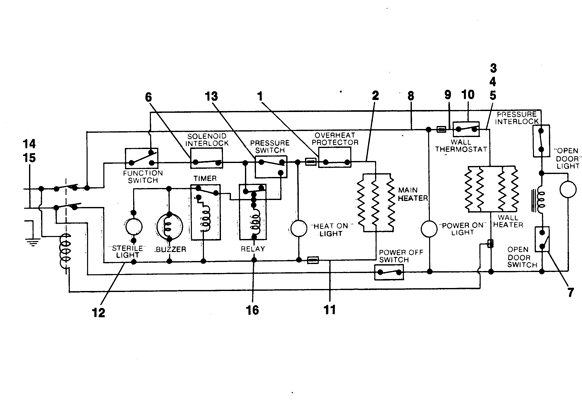

Magnaclave Electrical Diagram
Index | Part
Number | Description |
1 | Thermostat
- Overheat Protector | |
2 | 004773 | Wire
- Terminal to Wall Heater |
3 | 004383 | Wire
- Wall Heater |
4 | 004811 | Wire
- Wall Heater |
5 | 004812 | Wire
- Wall Heater |
6 | Switch
- Door Interlock | |
7 | Switch
- Door Open | |
8 | 004775 | Wire
- Wall Heater Power |
9 | 004774 | Wire
- Terminal to Thermostat |
10 | Thermostat
- Wall | |
11 | 004772 | Wire
- Terminal to Main Heater |
12 | 004776 | Wire
- Main Power |
13 | 012792 | Switch
- Pressure |
14 | 004688 | Wire
- Power Interconnect |
15 | 004799 | Wire
Assembly - Power Interconnect |
16 | 004826 | Wire
Harness Assembly |
